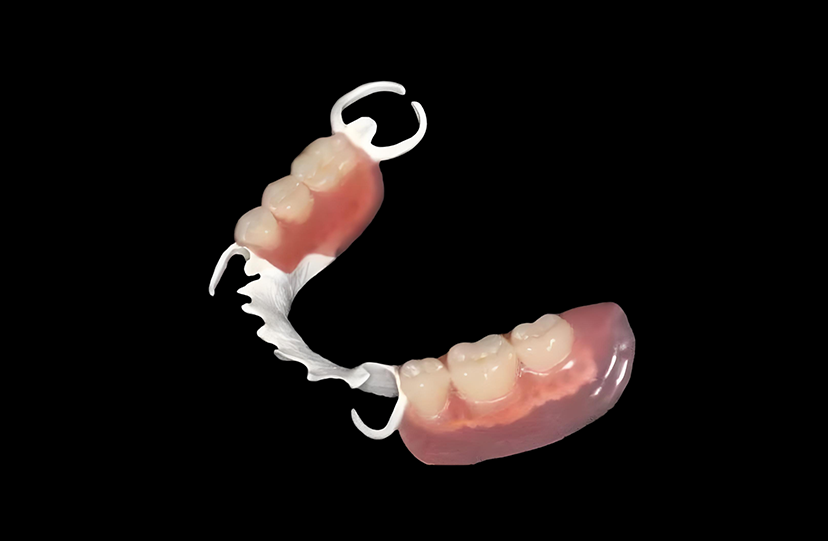

PEEK Framework: The Future of Metal-Free Partial Dentures

At HYC Dental Laboratory Co., Ltd., we've spent over 22 years perfecting dental restorations, and our PEEK partial frameworks represent a breakthrough in metal-free prosthetics. With an elastic modulus of 3.6–4 GPa that matches natural bone, a featherlight density of just 1.3 g/cm³, and complete radiolucency for imaging clarity, the Peek Framework offers your patients unmatched comfort and clinical advantages. ISO 13485 certified and FDA registered, we ensure every framework meets the highest medical-grade standards.

peek-framework

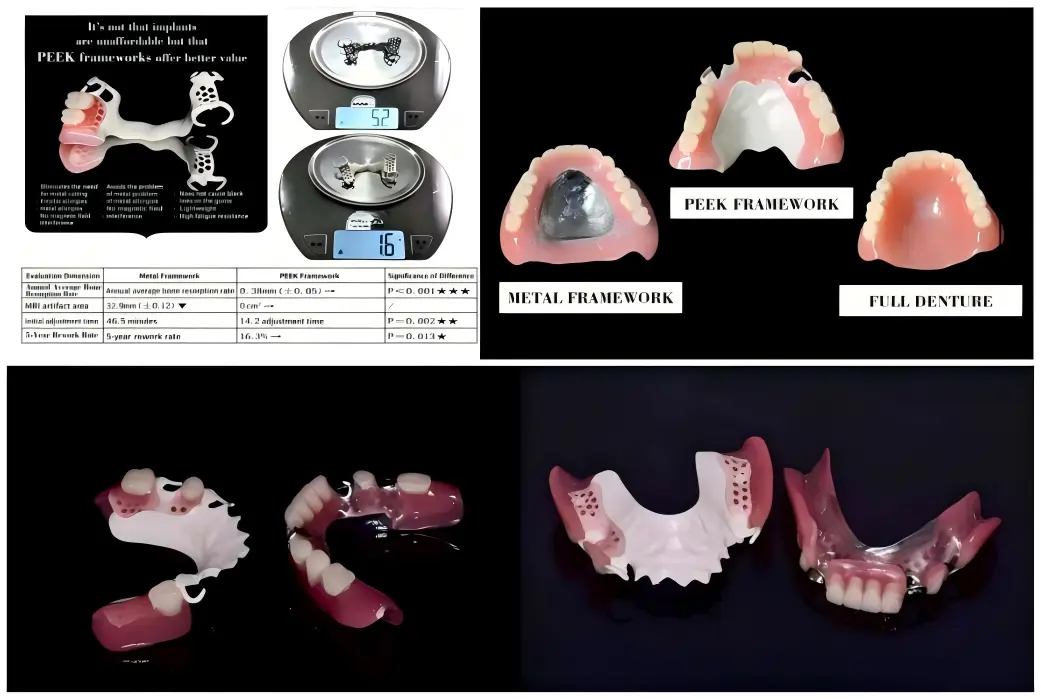

Why Choose a PEEK Framework Over Traditional Metal?

Conventional cobalt-chromium systems are solid but unbending. They can push your projection teeth and feel overwhelming in the mouth. The item changes this completely.

Bone-like adaptability implies less drive exchange to supporting teeth. Think of it as a stun safeguard for your patient's chomp. Metal can't do that.

Ultra-lightweight plan moves forward all-day consolation. Your patients will disregard they're wearing a denture. Metal systems frequently weigh three times more.

No metal hypersensitivities or taste issues. If your quiet has nickel or chromium affectability, Look is the most secure choice. It's totally inactive and hypoallergenic.

X-ray and MRI inviting. You can screen bone wellbeing and tissue changes without expelling the prosthesis. Metal artifacts vanish with PEEK.

peek-framework

Technical Specifications at a Glance

Feature	Specification
Material	Semicrystalline thermoplastic polymer (PEEK)
Elastic Modulus	3.6–4 GPa (bone-like)
Density	~1.3 g/cm³
Reinforcement Options	Carbon fiber (CFR-PEEK) or glass fiber
Processing Method	CAD/CAM milling, 3D printing, injection molding
Biocompatibility	Non-toxic, non-allergenic, chemically inert
Radiolucency	Transparent on X-rays, CT, and MRI
Color	Natural grayish-white or tooth-colored
Preparation Depth	1.5–2 mm for rest seats
Surface Treatment	Sandblasting or acid etching for bonding
Warranty (Fixed)	2 years
Warranty (Removable)	1 year
Lead Time (Standard)	3–4 days

Key Advantages for Your Clinical Practice

Shock Absorption Protects Abutment Teeth

Rigid metal transfers full chewing force to your abutments. PEEK's low modulus cushions those forces. This reduces the risk of periodontal damage over time.

Metal-Free Aesthetics

Your patients want to smile without showing dark clasps. PEEK is naturally tooth-colored. It blends with pink acrylic and resin teeth seamlessly.

Perfect for Implant-Supported Overdentures

PEEK frameworks reduce stress-shielding around implants. This helps preserve peri-implant bone and soft tissue health.

Plaque-Resistant Surface

PEEK polishes smooth and resists bacterial biofilm. This means better gum health and fewer inflammation problems.

When to Use PEEK Framework

Ideal indications:

Patients with documented metal allergies
Periodontally compromised dentition needing gentle support
Implant-retained hybrids and overdentures
Aesthetic zones where metal clasps would be visible
Patients requiring frequent diagnostic imaging

Contraindications:

Severe bruxism or parafunctional grinding
Limited vertical clearance (PEEK needs adequate thickness)
Very high-load posterior applications without fiber reinforcement

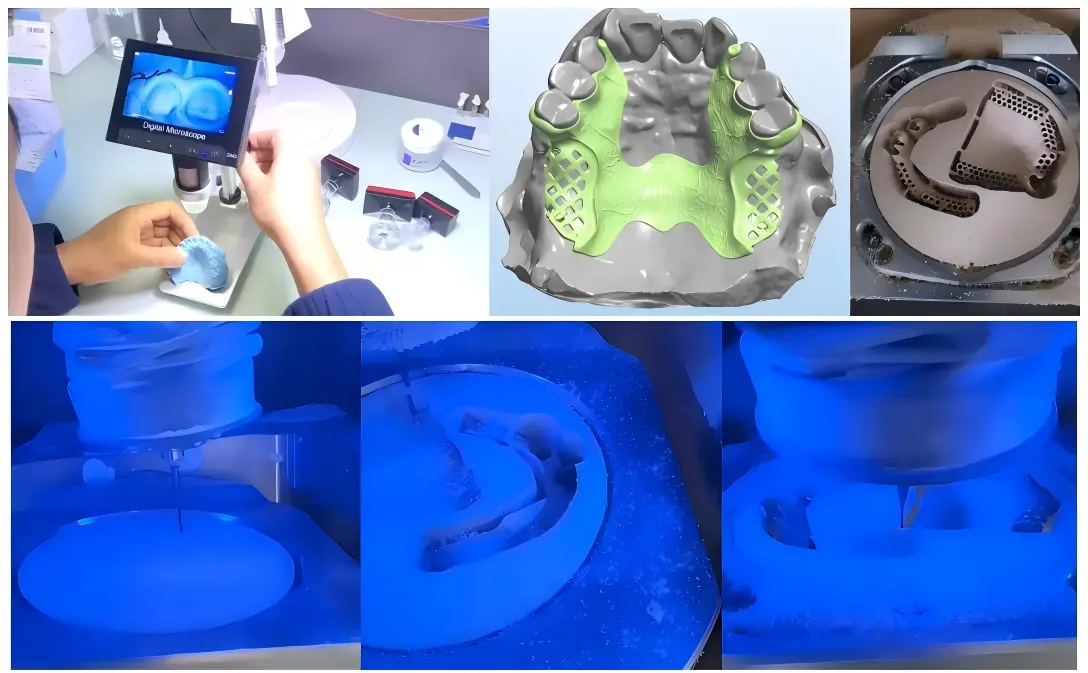

How We Fabricate Your PEEK Framework

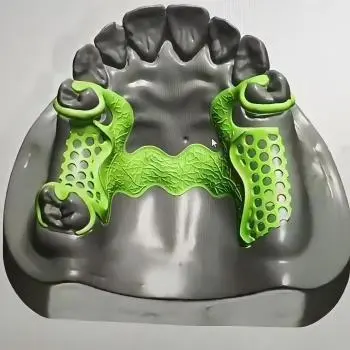

At HYC Dental Laboratory, we use advanced CAD/CAM technology to mill each framework with precision. Your digital or traditional impressions are converted into a 3D model. Our software designs the framework geometry with rounded internal angles to prevent stress concentration.

We mill or print the PEEK, then sandblast the surface for optimal bonding. Acrylic teeth and denture base resin are layered and cured. Every piece is inspected before shipment.

Standard turnaround: 3–4 days

Expedited service: Available free of charge for urgent cases

Flash delivery: Same-day shipment to selected regions

peek-framework

Certifications & Quality Assurance

US FDA Registered
ISO 13485:2016 Certified
CE Certified Materials

Every restoration undergoes strict quality control. We back our fixed restorations with a 2-year warranty and removable prosthetics with a 1-year warranty. Any quality-related issue is repaired or remade at no cost.

peek-framework

Q：How does the weight and feel compare to traditional metal dentures?

A：The item is essentially lighter and more natural-feeling than metal. Its bone-like adaptability makes it much more comfortable for all-day wear and makes a difference ensure characteristic teeth from intemperate drive.

Q：Will the clasps be visible when I smile?

A：PEEK offers a metal-free smile. The framework and its supports are designed to be virtually invisible, providing a much higher aesthetic standard than conventional metal dentures.

Q：Is it safe if I have metal allergies or sensitive gums?

A：The product is the ideal choice for patients with metal sensitivities. Because it is inert, it won't cause allergic reactions, metallic tastes, or temperature sensitivity.

Q：Do I need to remove it for X-rays or CT scans?

A：PEEK is imaging-friendly. It does not need to be removed for most diagnostic scans, as it allows for a clear view of oral health—a major benefit for long-term clinical monitoring.

Partner with HYC Dental Laboratory

We've served dental professionals across Europe and the United States since 2004. Our digital workflows ensure consistent accuracy. Our rapid turnaround keeps your schedule on track. Our commitment to quality earns your trust.

Ready to offer your patients the comfort and aesthetics they deserve? Contact us at info@hycdentallab.com to get started with PEEK frameworks today.
