Thermoplastic Polymer Framework: Metal-Free Dental Solutions for Modern Practices
Our Thermoplastic Polymer Framework combines over 22 years of dental expertise with advanced PEEK technology. Engineered with a bone-like elastic modulus of 3.6–4 GPa and weighing just 1.3 g/cm³, this framework delivers exceptional shock absorption and all-day comfort. HYC Dental Research facility holds ISO 13485 certification and US FDA enrollment, guaranteeing each reclamation meets universal therapeutic gadget guidelines. With a 2-year guarantee on settled rebuilding efforts and standard 3-day shipment, you get dependable quality sponsored by demonstrated clinical performance
Why Choose Our Thermoplastic Polymer Framework?
When your patients require metal-free arrangements, you require a accomplice who gets it both the science and the clinical substances. Our system addresses genuine challenges you confront each day in your hone.
Superior Biomechanical Performance
Traditional metal frameworks are rigid. They transfer stress directly to abutment teeth and bone. Our product changes that completely.
With an elastic modulus matching human cortical bone, it flexes naturally with oral function. This shock-absorbing property protects your patient's remaining teeth. It reduces stress concentration. Your patients experience less discomfort during function.

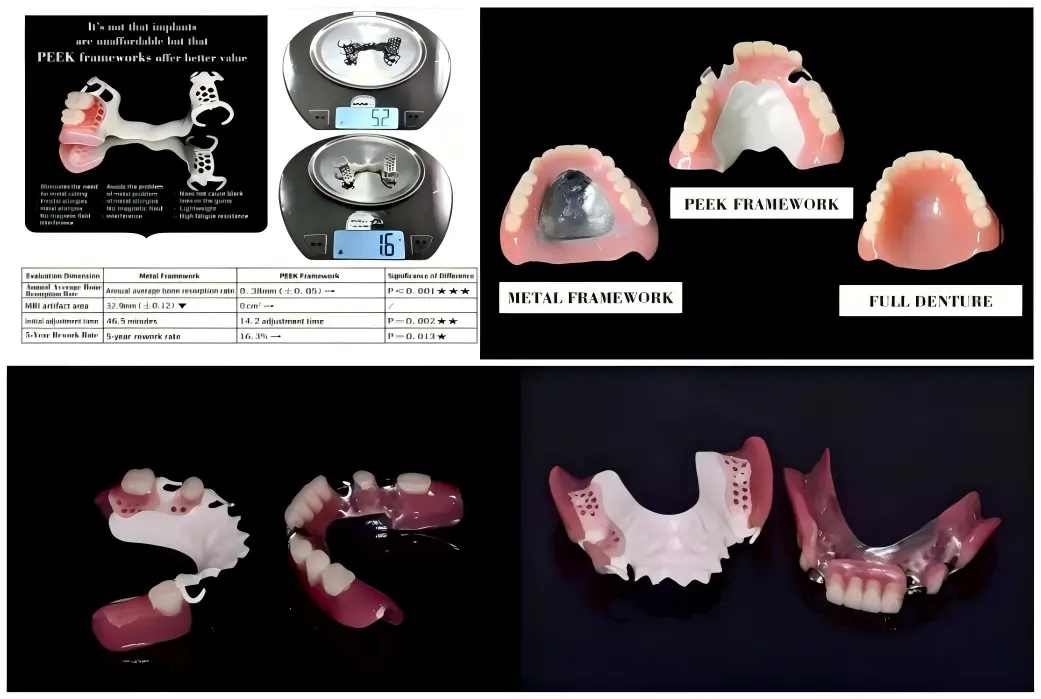

The lightweight design—less than one-fifth the weight of cobalt-chromium—improves discourse adjustment. Your patients alter speedier. They wear their prosthesis more consistently.
Perfect for Touchy Patients
Metal sensitivities are more common than numerous dental practitioners realize. Nickel affectability influences up to 17% of ladies and 3% of men. Cobalt and chromium can moreover trigger reactions.
Our polymer arrangement dispenses with these concerns totally. It's totally biocompatible. Non-toxic. Non-allergenic. Your sensitized patients at long last get a prosthesis they can wear without irritation or discomfort.
Plus, there's no metallic taste. No temperature affectability when drinking coffee or eating ice cream. Fair comfortable, normal function.
Imaging-Friendly Technology
Here's a huge clinical advantage: radiolucency. Unlike metal frameworks that create artifacts on X-rays, CT scans, and MRIs, our material is completely transparent to imaging.
You can monitor bone health around abutments clearly. Detect caries under restorations easily. Evaluate implant integration without interference. This means better long-term patient management and earlier intervention when needed.
Technical Specifications of Thermoplastic Polymer Framework
| Property | Specification | Clinical Benefit |
|---|---|---|
| Material Composition | Semicrystalline PEEK polymer | High biocompatibility, chemical resistance |
| Elastic Modulus | 3.6–4 GPa (bone-like) | Reduces stress shielding, protects abutments |
| Density | 1.3 g/cm³ | Significantly lighter than metal (Co-Cr: 8.5 g/cm³) |
| Reinforcement Options | Carbon or glass fiber variants available | Increased stiffness (up to 18 GPa) for heavy-load cases |

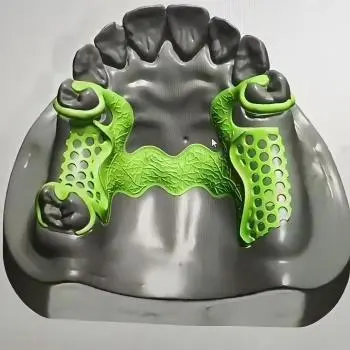

| Fabrication Method | CAD/CAM milling or 3D printing | Precise fit, consistent quality, digital workflow integration |
| Color | Natural white/beige | Easier aesthetic masking than dark metal |
| Radiolucency | X-ray transparent | Clear diagnostic imaging without artifacts |
| Biocompatibility | FDA-listed, CE certified | Safe for oral environment, no allergic reactions |
| Warranty Period | 2 years (fixed), 1 year (removable) | Quality assurance and peace of mind |
Clinical Indications
Our framework works exceptionally well for specific patient profiles:
Metal Sensitivity Cases: When your patient has documented allergies to cobalt, chromium, or nickel, this is your first-line solution.
Periodontally Compromised Situations: The flexible support system reduces torque on weakened abutment teeth during insertion and removal.
Implant-Supported Prostheses: Progressively utilized for embed overdentures and crossover cases where bone-like mechanical behavior benefits osseointegration.
Aesthetic Zone Necessities: When clasps would appear in the grin line, the tooth-colored fabric mixes actually without the metallic shine.
Important Consideration
While our Thermoplastic Polymer Framework offers remarkable advantages, it's not suitable for every case. Here's what you should know:
Severe Bruxism: Patients with extreme grinding habits may deform the material over time. Consider night guards or alternative materials for heavy parafunction.
Limited Vertical Space: The framework requires slightly more thickness than metal to achieve comparable strength. Cases with minimal interocclusal clearance may be challenging.
Preparation Requirements: Rest seats need 1.5–2mm depth to accommodate proper thickness. Internal line angles should be rounded to prevent stress concentration.
Surface Bonding: The material is chemically inert. Your lab must use sandblasting or acid etching to create mechanical retention for acrylic components.
Digital Workflow Integration
We know your practice relies on efficient digital systems. Our production process integrates seamlessly with your existing workflow.

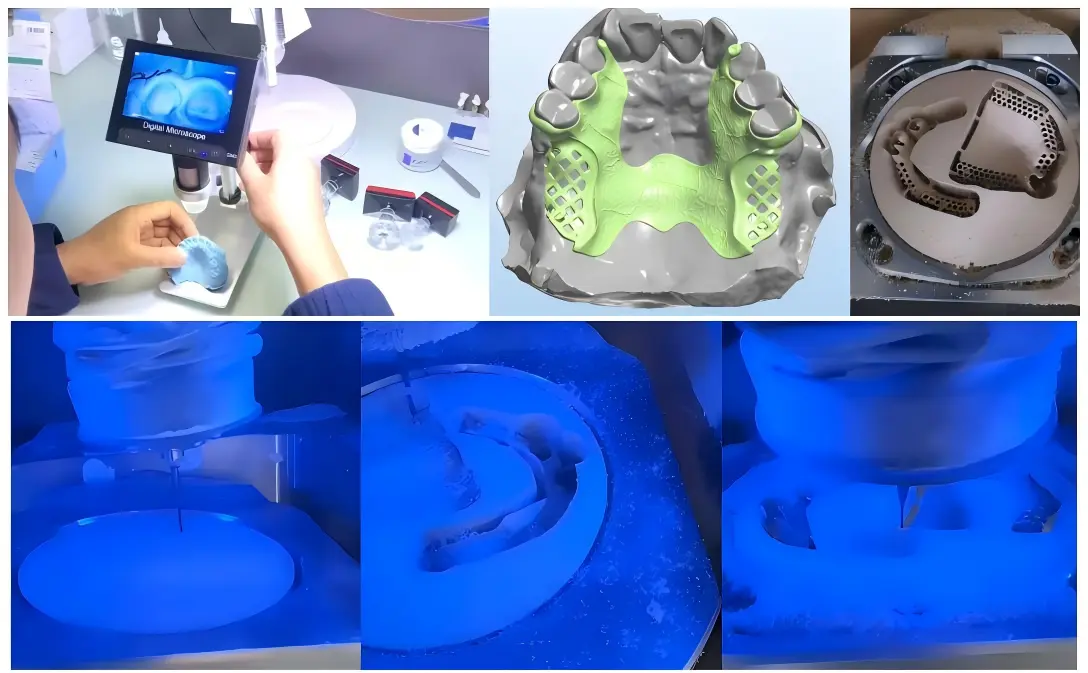

Send us digital impressions or traditional models—we work with both. Our advanced CAD/CAM technology mills each framework with precision accuracy. The result? Excellent first-time fit rates and extremely low remake percentages.
Standard turnaround is fair 3 days for most orders. Require it quicker? We offer assisted preparing with need bolster at no additional charge. For critical cases, our streak conveyance benefit gives same-day shipment to chosen regions.
Quality You Can Trust
Every system we deliver experiences strict review some time recently shipment. Our ISO 13485 certification and US FDA enrollment aren't fair badges—they speak to our commitment to steady, dependable quality.
We've served dental experts over Europe and the Joined together States for over two decades. This involvement has instructed us what clinicians require: unsurprising comes about, responsive bolster, and arrangements that really work in real-world conditions.
All materials carry FDA posting and CE certification. Full compliance with universal therapeutic gadget directions is standard, not optional.
Frequently Inquired Questions
Q：How does the weight and feel compare to conventional metal dentures?
A：The Look system is essentially lighter and more natural-feeling than metal. Its bone-like adaptability makes it much more comfortable for all-day wear and makes a difference ensure characteristic teeth from over the top force.
Q：Will the clasps be obvious when I smile?
A：The Look offers a metal-free grin. The system and its bolsters are outlined to be for all intents and purposes undetectable, giving a much higher tasteful standard than routine metal dentures.
Q：Is it secure if I have metal hypersensitivities or touchy gums?
A：The Look system is the perfect choice for patients with metal sensitivities. Since it is dormant, it won't cause unfavorably susceptible responses, metallic tastes, or temperature sensitivity.
Q：Do I require to expel it for X-rays or CT scans?
A：The Look is imaging-friendly. It does not require to be evacuated for most demonstrative filters, as it permits for a clear see of verbal health—a major advantage for long-term clinical checking.
Ready to Offer Your Patients a Better Experience?
Give your metal-sensitive patients the comfortable, aesthetic Thermoplastic Polymer Framework solution they deserve. Improve your clinic efficiency with accurate first-fit restorations. Partner with a laboratory that understands your clinical needs. Contact us at info@hycdentallab.com to discuss your specific case requirements.
